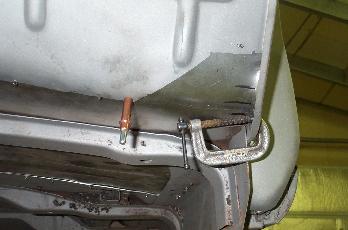

Note here that the new panel has been curved upward to match the existing floor and
bent downward along the outer edge
just as the old floor was.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|

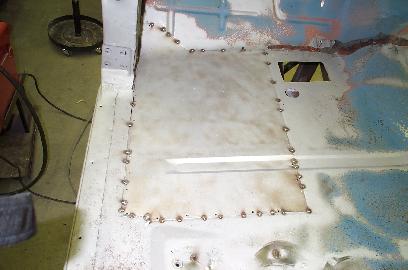

Next, tack weld the patch panel in place using small spot welds.
Then remove the Cleco fasteners.
Caution: Do not weld in the new panel with long weld beads.
Use small spot welds alternating around the edges allowing each area to properly cool before
making the next weld.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Then weld the 3/16 Cleco fastener holes shut.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
